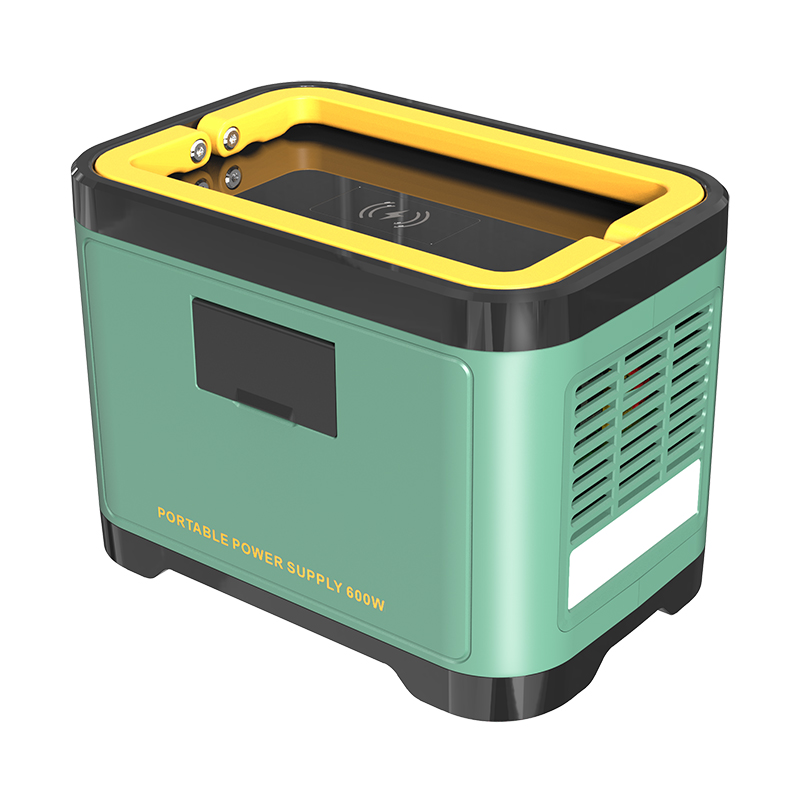

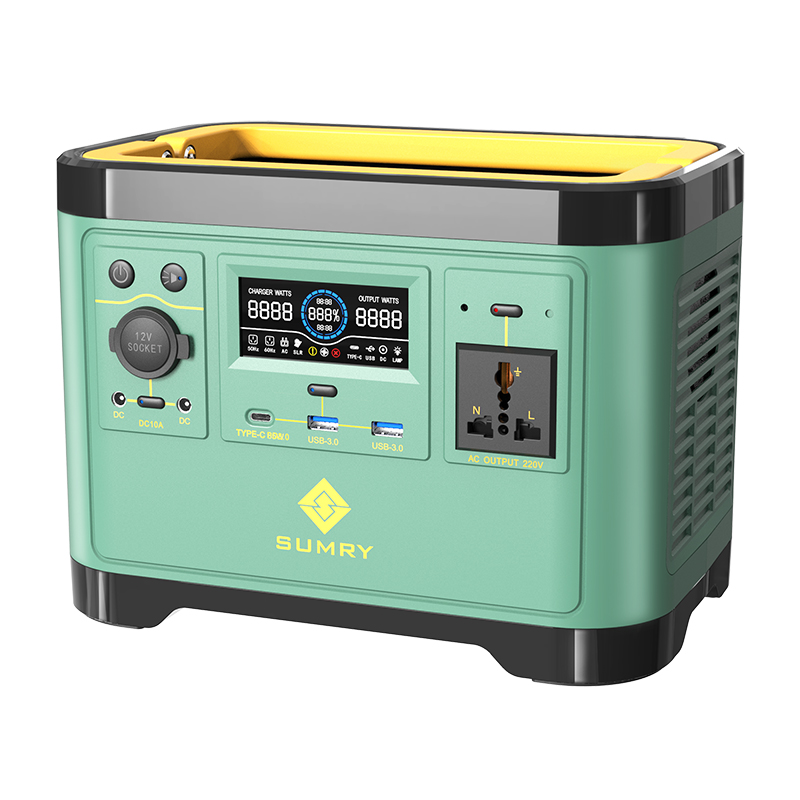

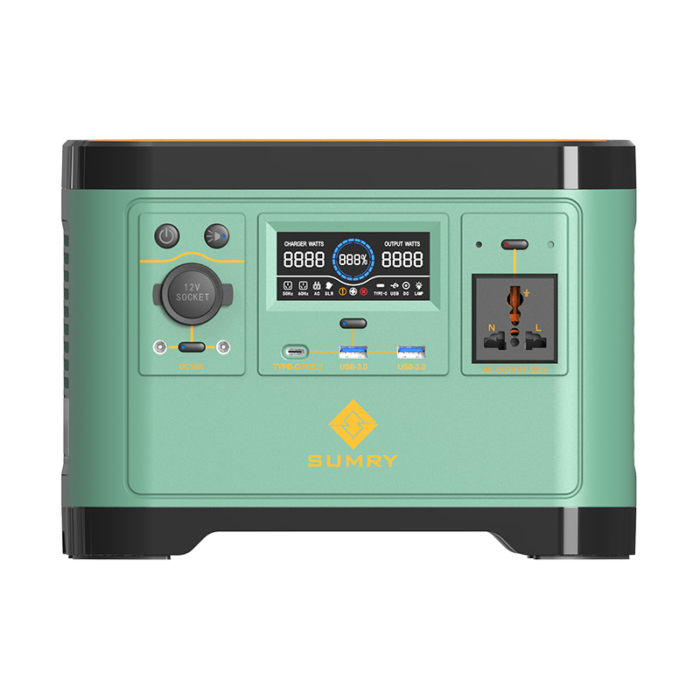

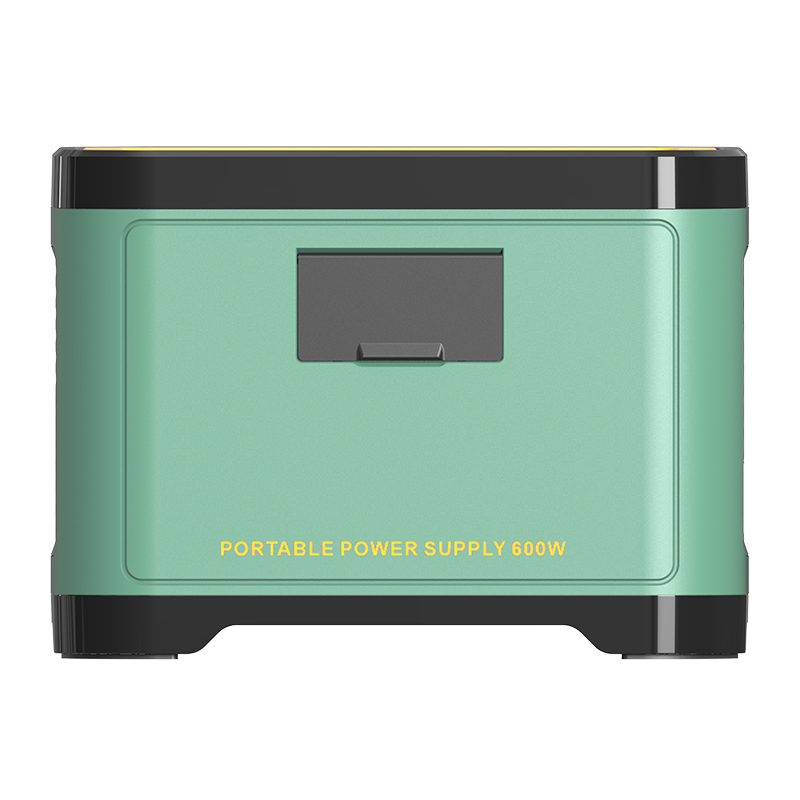

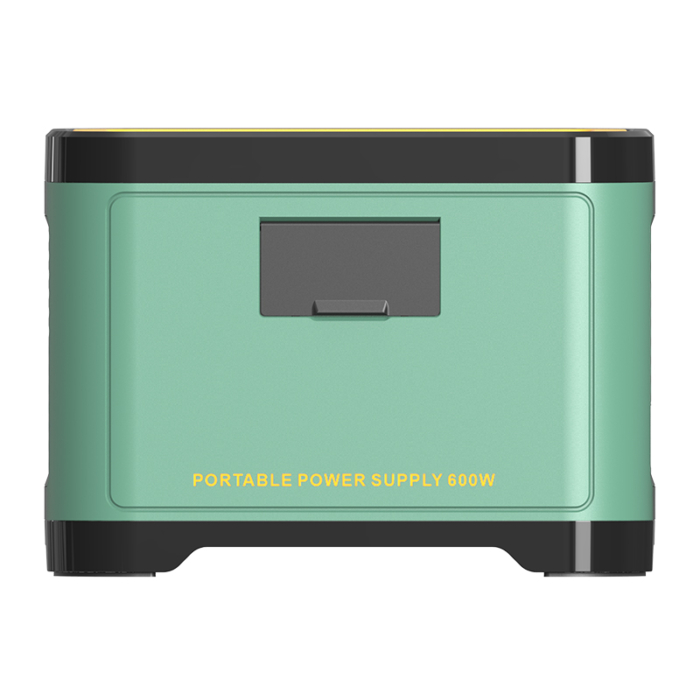

SMR650 Series Energy Storage Portable Power Station
Feature:
600W, 600VA(ambient temperature -10°C~45°C) continuous full power output
Super anti-shock design, support a variety of loads,use at will
Smart charging design,support solar charging, city electricity charging(solar charging priorty)
Multiple intelligent protection (temperature protection, overload protection,short circuit protection)
Multiple fast charging protocols, maximum support PD65W super fast charging (optional wireless charging)
Protable, LCD digital display, LED lighting
Built-in 650Wh high-capacity lithium battery, support cold start
Pure sine wave output
Applicable to a variety of scenarios
Intelligent fan control, extend service life and reduce noise
Automatic switching between mains and inverter,and phase-by-wave phase detection, which is more stable and reliable
Share Our Software With Your Network
Description
| MODEL | SMR600E | SMR600 |
| Rated Output Power | 600W/600VA | |
| AC INPUT | ||
| AC Input Voltage | 220VAC | 110VAC |
| Bypass Voltage Range | 176VAC~264VAC | 90VAC~130VAC |
| Frequency Range | 45Hz~55Hz | 55Hz~65Hz |
| AC Charging | MAX 125W(5A) | |
| AC OUTPUT | ||
| Rated Output Voltage | 220VAC±3% | 110VAC±3% |
| Output Frequency | 50Hz/60Hz | |
| Peak Power | 1200VA | |
| Overload Protection | 110%~150% Cut off the output after 10s 150%~200%Cut off the output after 5s ＞200%,Cut off the output after 200ms |
|
| Conversion Efficiency | 91.50% | 90% |
| Waveform | Pure Sine Wave | |
| BATTERY | ||
| Battery Volatge Range | 18V~25.2V | |
| Battery Capacity | 577Wh | |
| Over-voltage Voltage | 25.5V | |
| Low DC Voltage alarm | 19V | |
| Battery Low Cut-off Voltage | 18V | |
| SOLAR CHARGE | ||
| PV Input Voltage(VOC) | MAX 30V | |
| MPPT Voltage | 10V-24V | |
| Max. Charge Current | 5A | |
| Max. Conversion Efficiency | 95% | |
| MPPT Efficiency | 99% | |
| DC OUTPUT | ||
| Car Charge Output/DC Power Socket | 12V10A | |
| TYPE-C | Max 65W 5V/9V/12V/15V/20V (PD3.0/QC3.0/QC2.0/Apple/BC1.2DCP/SCP/AFC/FCP) |
|
| USB-Ax2 | Max 18W 5V/9V/12V(QC2.0/QC3.0/AFC/FCP/SCP/PE2.0/ PE1.1/APPLE/SAMSUNG/BC1.2 DCP) |
|
| Lighting | LED Lighting | |
| Protection | Battery over-voltage protection; Over-temperature protection; Overload protection;Short-circuit protection; PV anti-reverse connection protection |
|
| ENVIROMENT | ||
| Humidity | ＜90%(No condensation) | |
| Temperature | Discharge temperature -20℃~60℃,charging temperature 0℃~45℃, storage temperature: -20℃~45℃ (20℃~30℃ best) | |
| Altitude | <2000m | |
| PHYSICAL | ||
| Display | LCD | |
| Dimension D*W*H(mm) | 270x179x198 | |
| Net Weight | 6.3kg | |
