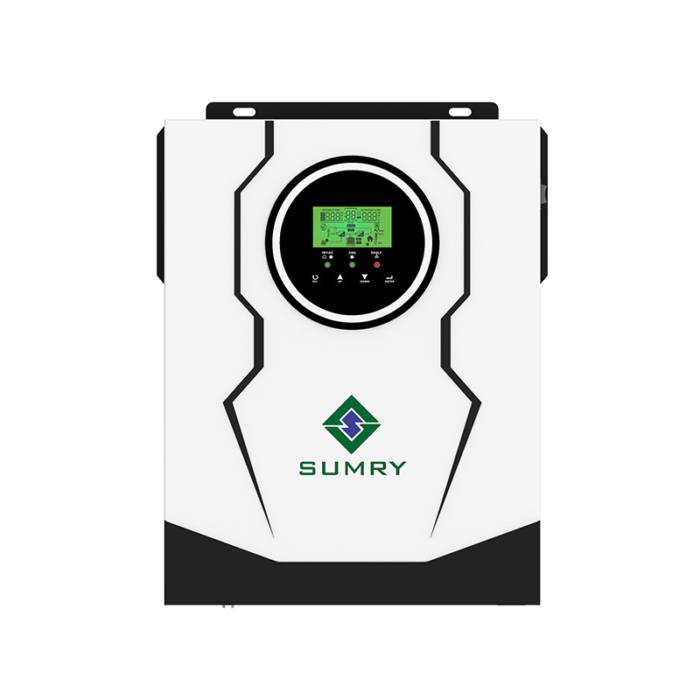

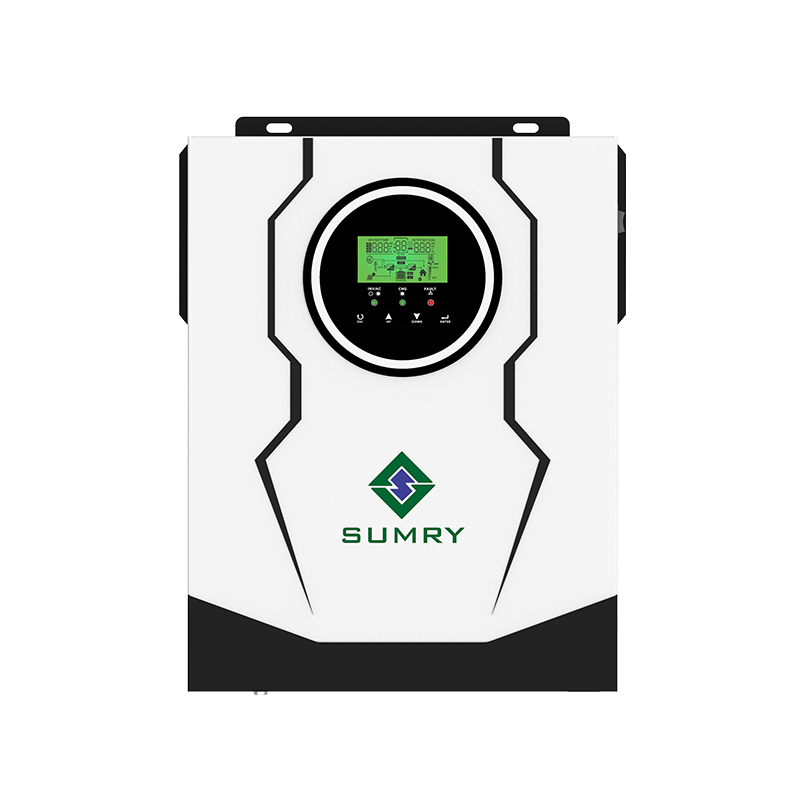

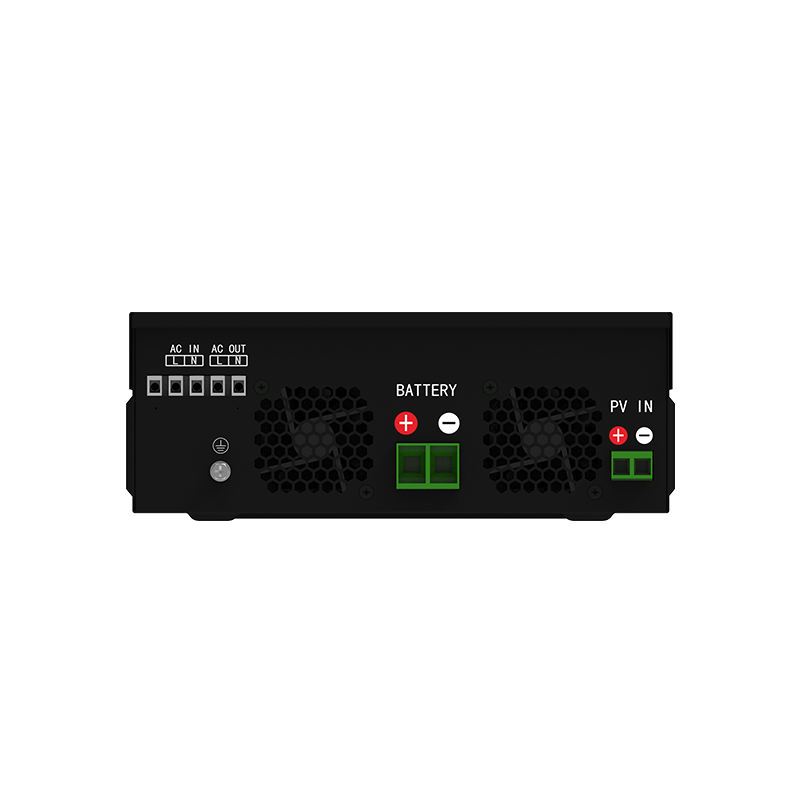

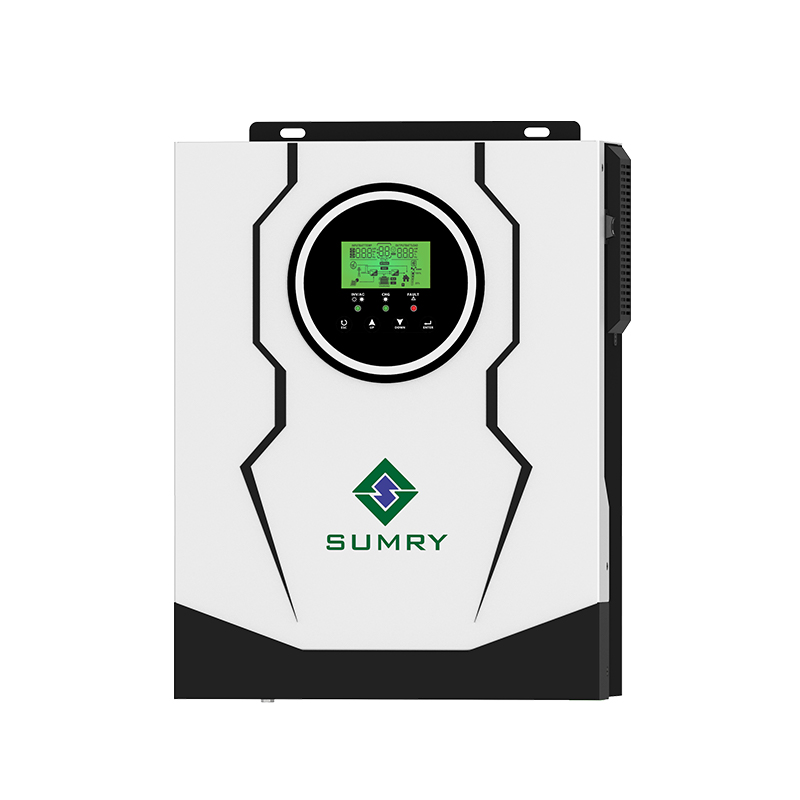

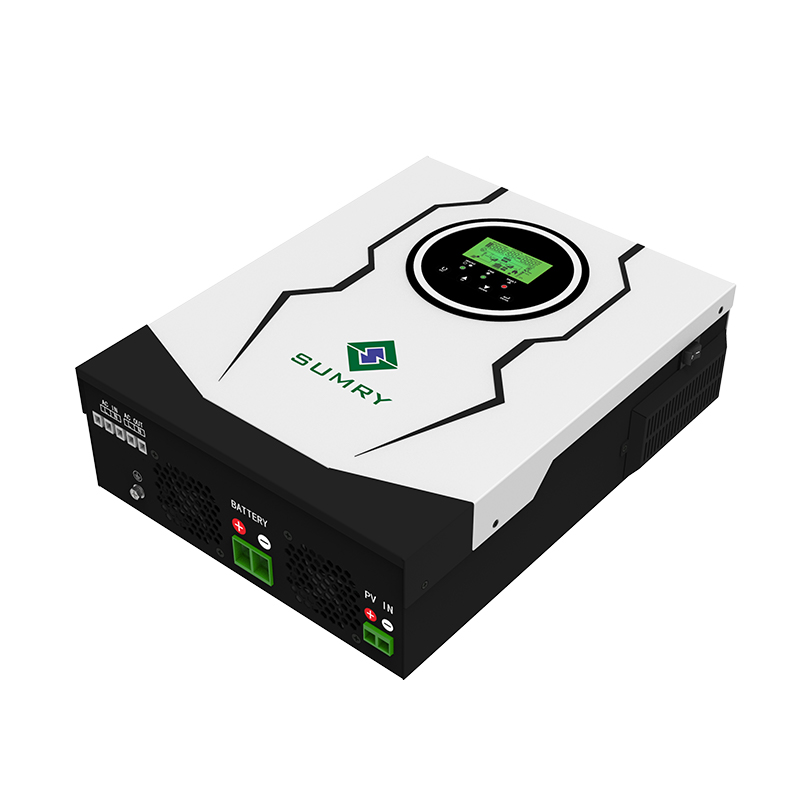

SM-H Series Off Grid Solar Inverter
Feature:
Pure sine wave solar inverter
WIFI& GPRS available for IOS and android
Buit-in 80A MPPT solar charger
Buit-in anti-dusk kit for harsh environment (optional)
Compatible with lithium-ion battery
High PV input voltage range(90-450VDC)
Smart battery charge design to optimize battery life
Solar energy is provided directly to the load first
Can meet the rich custom needs of customers
Share Our Software With Your Network
Description
SM-H Series Off Grid Solar Inverter
| MODEL | SM-2000H-12 | SH-3200H-24 |
| Rated Power | 2000VA/1600W | 3200VA/3000W |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170- 280VAC(for personal computers) 90-280VAC(for home a ppliances) |
|
| Frequency Range | 50Hz/60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt.Mode) | 230VAC+5% | |
| Surge power | 4000VA | 6400VA |
| Efficiency(Peak) PV to INV | 98% | |
| Efficiency(Peak) BAT to INV | 94% | |
| Transfer Time | 10ms (for personal computers) 20ms (for home appliances) |
|
| Wave form | Pure Sine Wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 12VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC |
| Overcharge Protection | 16VDC | 33VDC |
| Maximum charge current | 60A | |
| SOLAR CHARGER | ||
| MAX.PV Array Power | 2000W | 3000W |
| MPPT Range@ Operating Voltage | 90-430VDC | |
| Maximum PV Array Open Circuit Voltage | 450VDC | |
| Maximum Charging Current | 80A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension.D*W*H(mm) | 348*270*95mm | |
| Net Weight (kgs) | 4kg | 5kg |
| Communication Interface | RS232(Standard) GPRS/WIFI(Optional) |
|
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | (-10°C to 55°C) | |
| Storage Temperature | (-15°C to 60°C) | |
