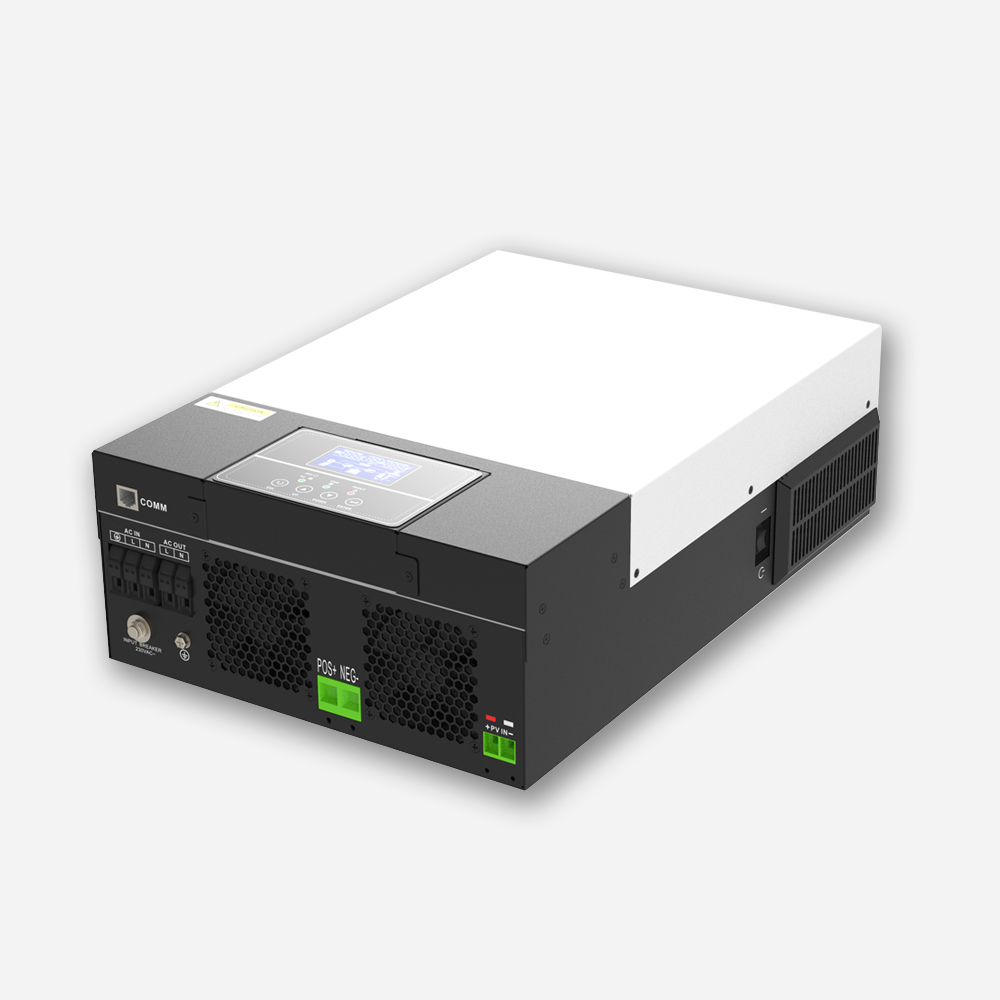

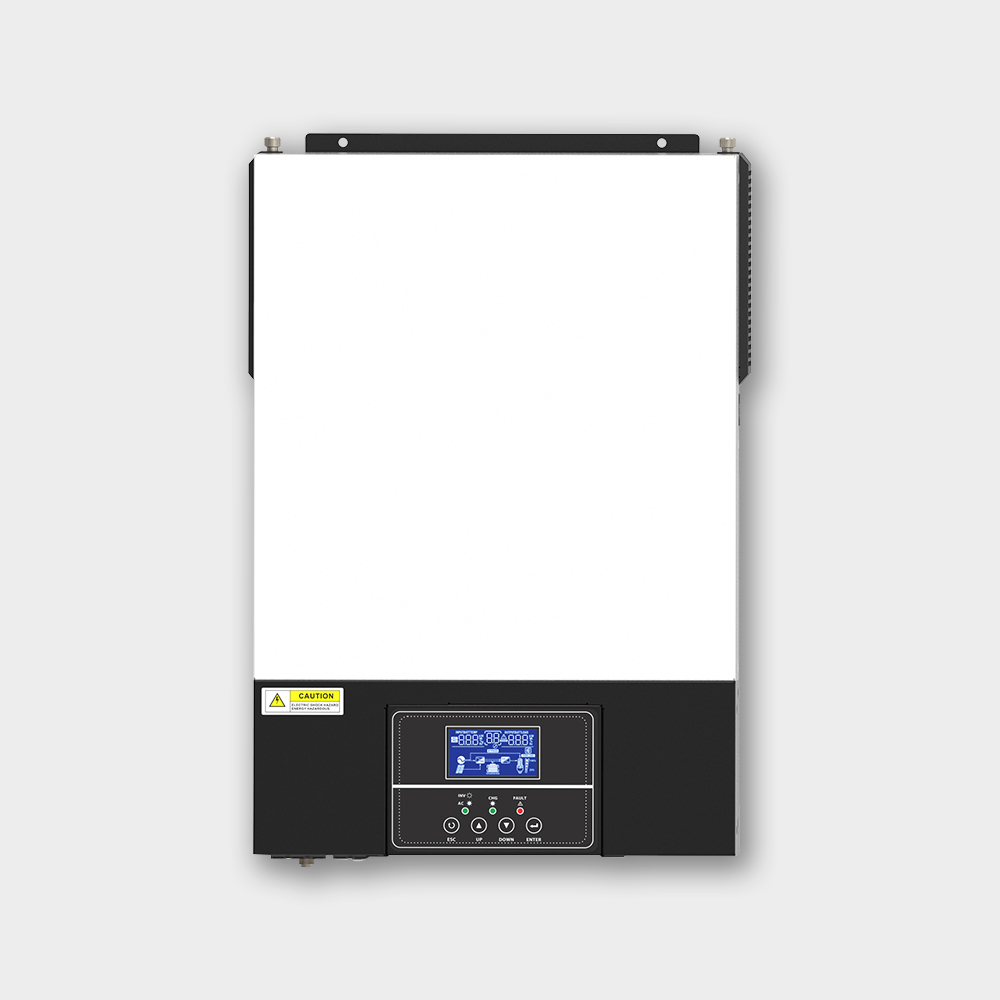

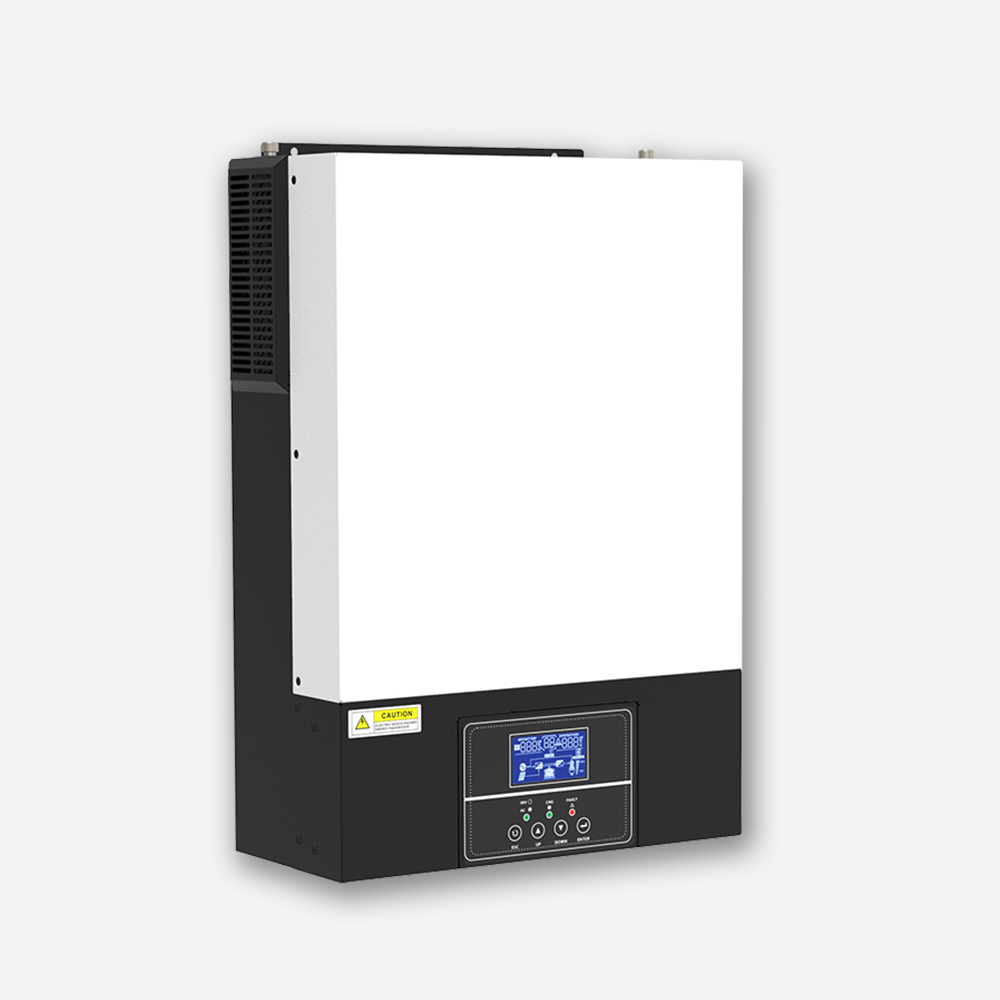

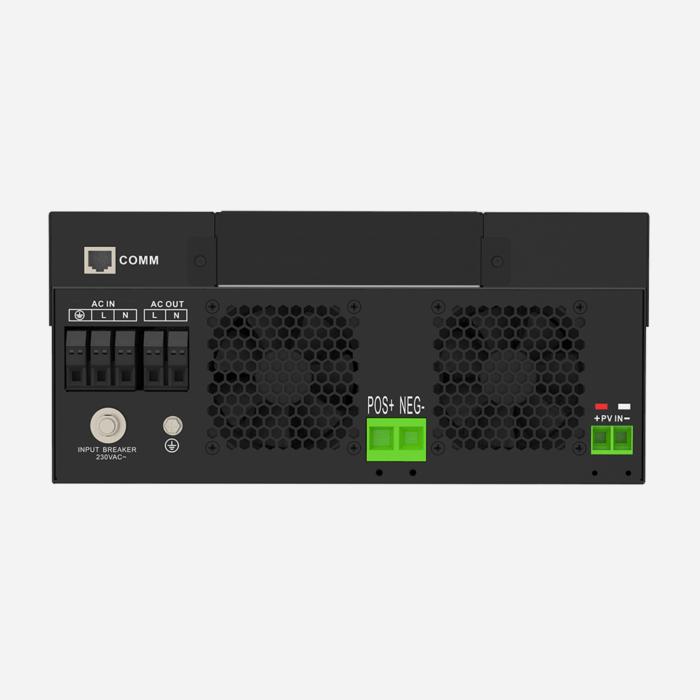

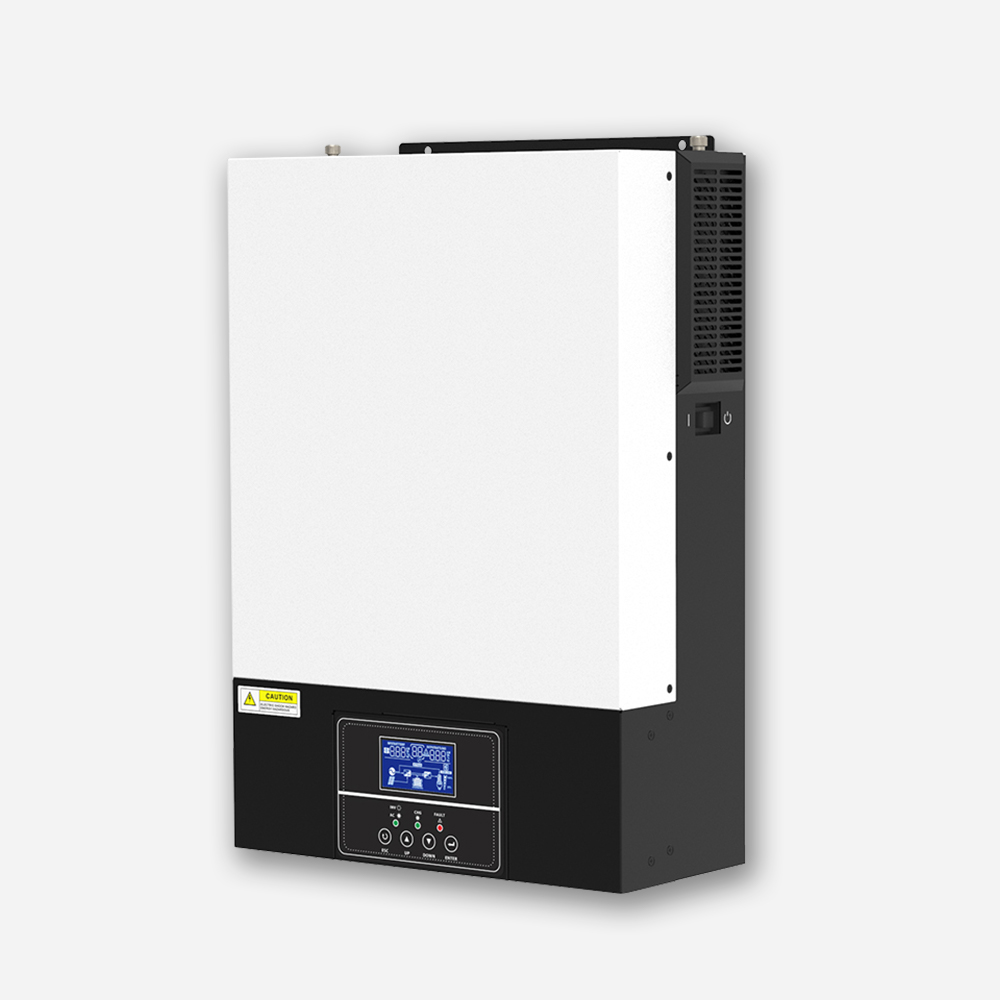

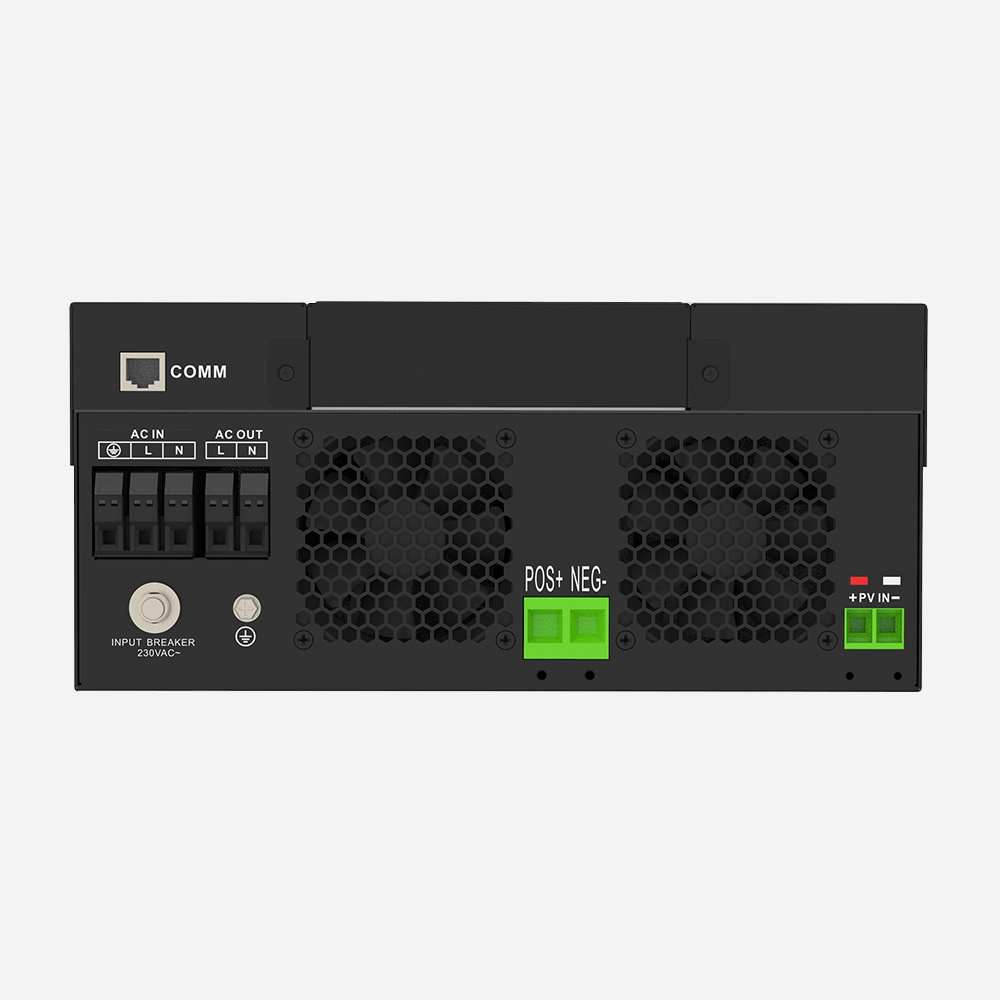

MPS-VII Series Off Grid Solar Inverter
Feature:
1.Pure sine wave solar inverter
2.Output powerfactor 1.0
3.Wifi&GPRS available for 10S and android
4.Inverter running without battery
5.Built-in 100A MPPT solar charger
6.High PV input voltage range(120~500VDC)
7.Built-in anti-dusk kit for harsh environment(optional)
8.Smart battery charge design to optimize battery life

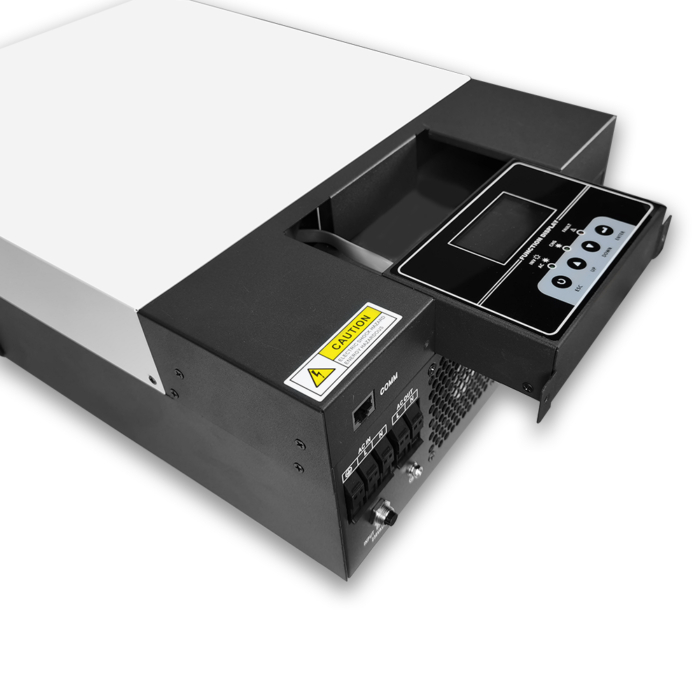

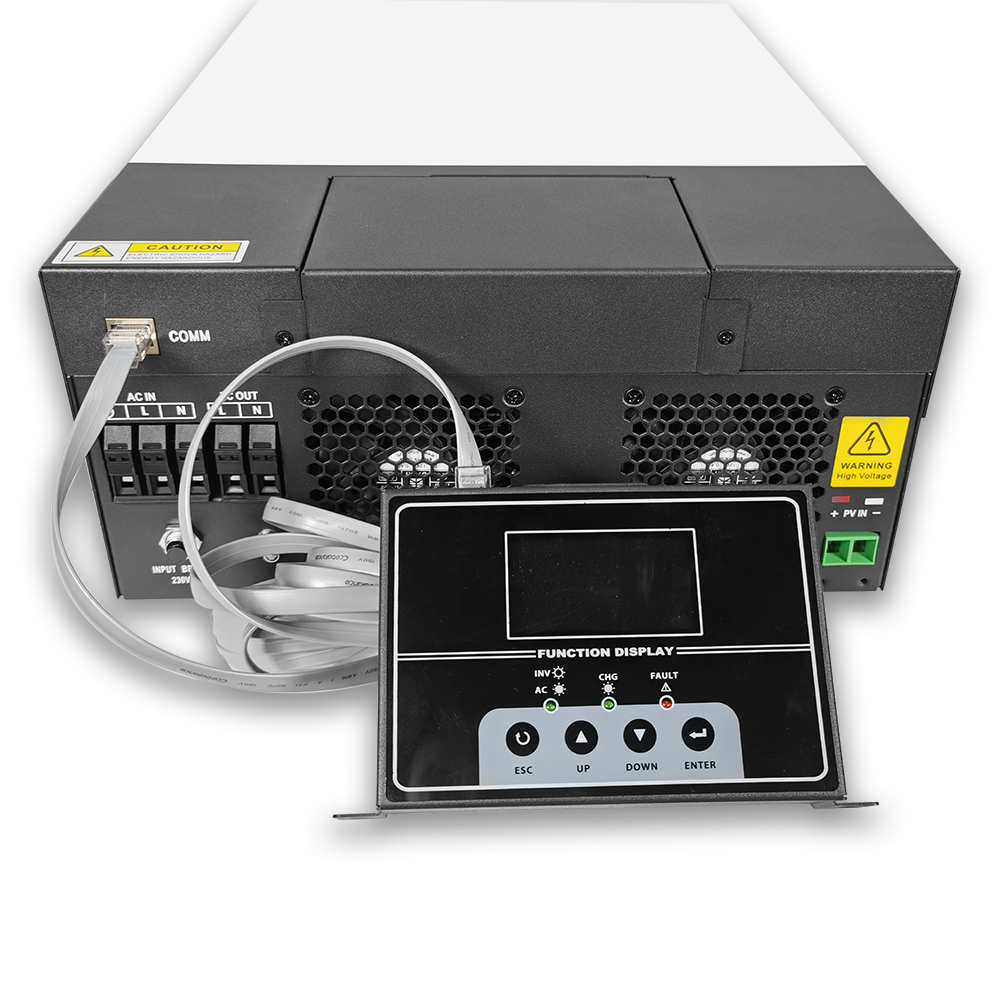

9.Remove LCD
Share Our Software With Your Network
Description
| Model | MPS-V II-3500W | MPS-V II-5500W |
| Rated power | 3500VA/3500W | 5500VA/5500W |
| Input Voltage | 230VAC | 230VAC |
| Input Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) |
170-280VAC(for personal computers) 90-280VAC(for home appliances) |
| Input Frequency Range | 50Hz/60Hz(Auto sensing） | 50Hz/60Hz(Auto sensing） |
| Output AC Voltage Regulation(Batt.Mode) | 230VAC±5% | 230VAC±5% |
| Output Surge Power | 7000VA | 11000VA |
| Output Efficiency（Peak）PV to INV | 97% | 97% |
| OutputEfficiency（Peak）BAT to INV | 94% | 94% |
| Output Transfer Time | 10ms（for personal computers） 20ms（for home appliances） |
10ms（for personal computers） 20ms（for home appliances） |
| Output Wave form | Pure Sine Wave | Pure Sine Wave |
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 33VDC | 63VDC |
| Maximum charge current | 80A | 80A |
| MAX.PV Array Power | 5000W | 6000W |
| MPPT Range@ Operating Voltage | 120-500VDC | 120-500VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC | 500VDC |
| Maximum Charging Current | 110A | 110A |
| Maximum Efficiency | 98% | 98% |
| Dimension. D*W*H（mm） | 440*300*100mm | 440*300*100mm |
| Net Weight（kgs） | 11kg | 12kg |
| Communication Interface | REMOVE LCD/RS232（Standard） GPRS/WIFI（Optional） |
REMOVE LCD/RS232（Standard） GPRS/WIFI（Optional） |
| Humidity | 5% to 95% Relative Humidity（Non-condensing） | 5% to 95% Relative Humidity（Non-condensing） |
| Operating Temperature | 0℃ to 55℃ | 0℃ to 55℃ |
| Storage Temperature | (-15℃ to 60℃) | (-15℃ to 60℃) |
