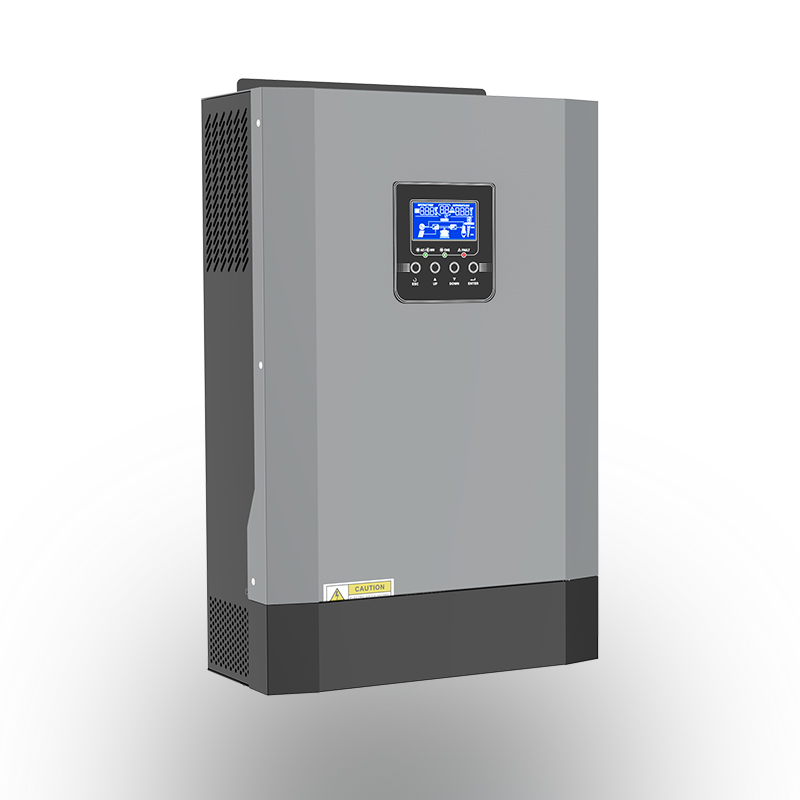

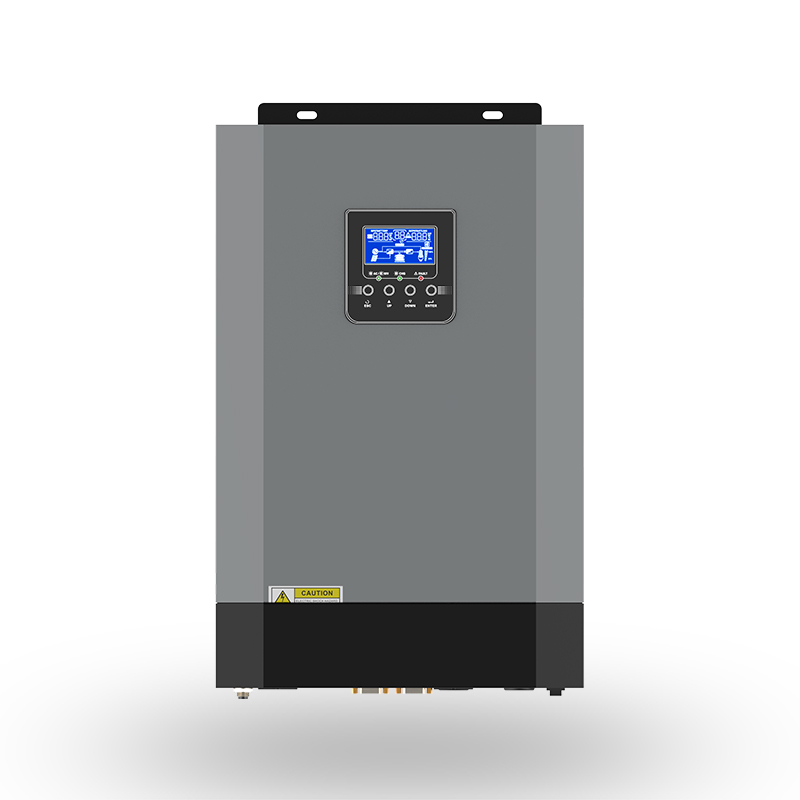

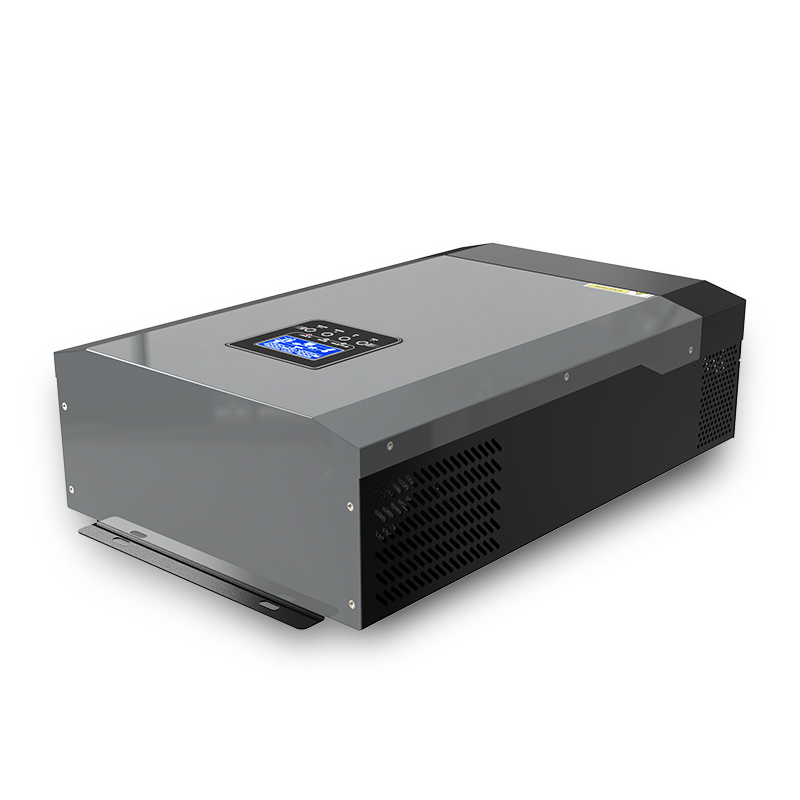

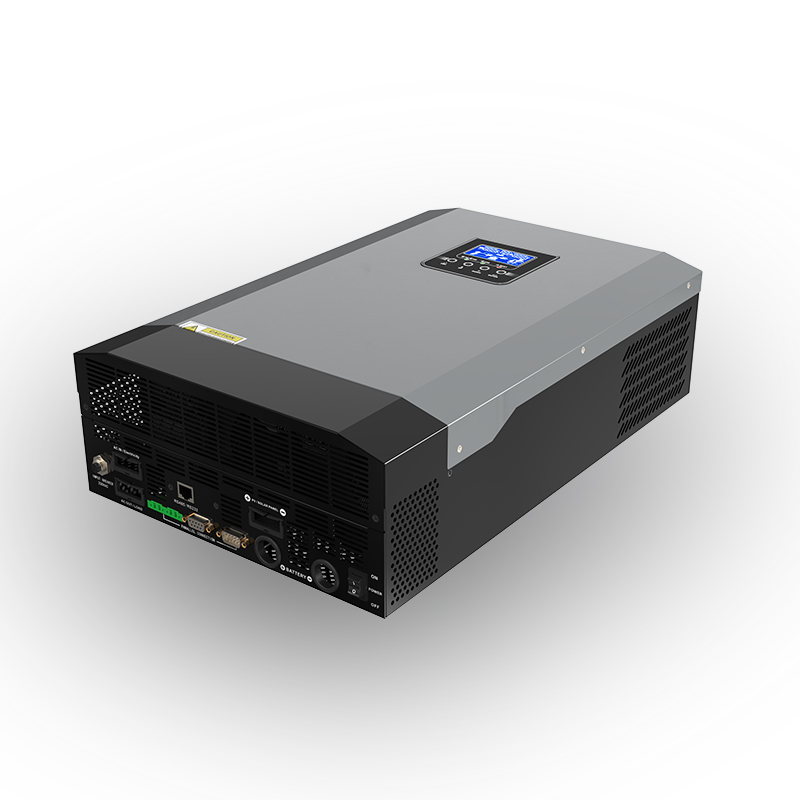

MPS-H Series Off Grid Solar Inverter
Feature:
1.Rate Power: 3500VA/3500W 5500VA/5500W
2.Pure sine wave output, output power factor 1.0
3.Programmable supply priority for PV，Battery or Grid
4.User-adjustable charge current and voltage
5.Wide PV input range (120Vdc -500Vdc),110A MPPT SCC
6.Working without batteries in sunny day
7.WIFI Monitoring Function (optional)
8.Anti-dusk kit for harsh environment(optional)

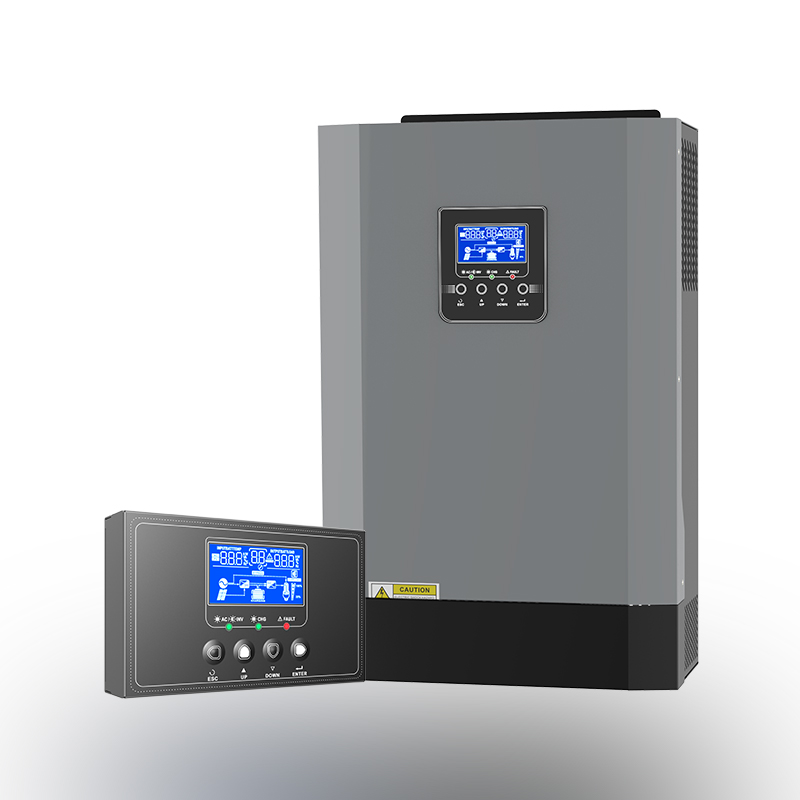

9.LCD remote control with 10meters wire(optional)
10.PV and electricity comple mentary
11.Use with lithium battery
Share Our Software With Your Network
Description
| Model | MPS-3500H | MPS-5500H |
| Rated power | 3500VA/3500W | 5500VA/5500W |
| Input Voltage | 230VAC | 230VAC |
| Input Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) |
170-280VAC(for personal computers) 90-280VAC(for home appliances) |
| Input Frequency Range | 50Hz/60Hz(Auto） | 50Hz/60Hz(Auto） |
| Output AC Voltage Regulation(Batt.Mode) | 230VAC±5% | 230VAC±5% |
| Output Surge Power | 7000VA | 11000VA |
| Output Efficiency（Peak）PV to INV | 97% | 97% |
| OutputEfficiency（Peak）BAT to INV | 94% | 94% |
| Output Transfer Time | 10ms（for personal computers） 20ms（for home appliances） |
10ms（for personal computers） 20ms（for home appliances） |
| Output Wave form | Pure Sine Wave | Pure Sine Wave |
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 33VDC | 63VDC |
| Maximum charge current | 80A | 80A |
| MAX.PV Array Power | 5000W | 6000W |
| MPPT Range@ Operating Voltage | 120-500VDC | 120-500VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC | 500VDC |
| Maximum Charging Current | 110A | 110A |
| Maximum Efficiency | 98% | 98% |
| Dimension. D*W*H（mm） | 472*297*129mm | 472*297*129mm |
| Net Weight（kgs） | 13kg | 14kg |
| Communication Interface | RS485/RS232（Standard） LCD remote/WIFI（Optional） |
RS485/RS232（Standard） LCD remote/WIFI（Optional） |
| Humidity | 5% to 95% Relative Humidity（Non-condensing） | 5% to 95% Relative Humidity（Non-condensing） |
| Operating Temperature | 0℃ to 55℃ | 0℃ to 55℃ |
| Storage Temperature | -15℃ to 60℃ | -15℃ to 60℃ |
