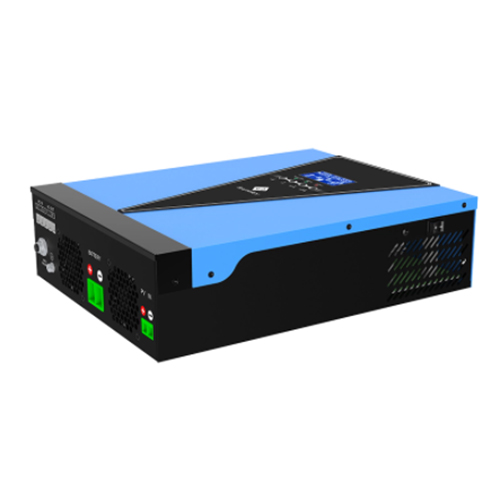

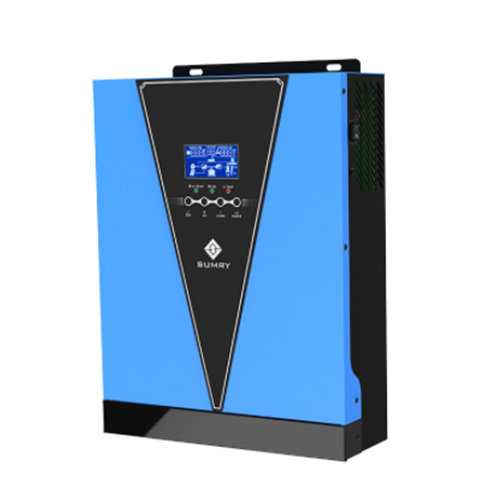

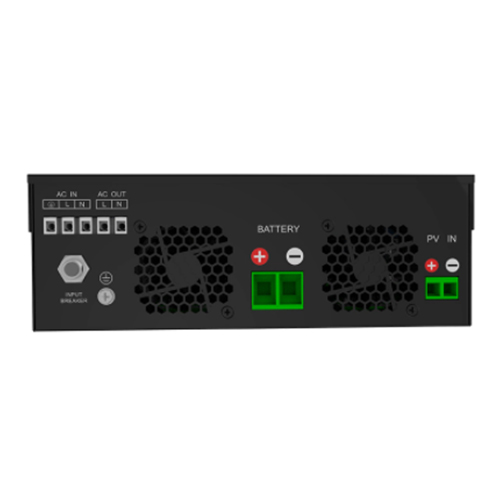

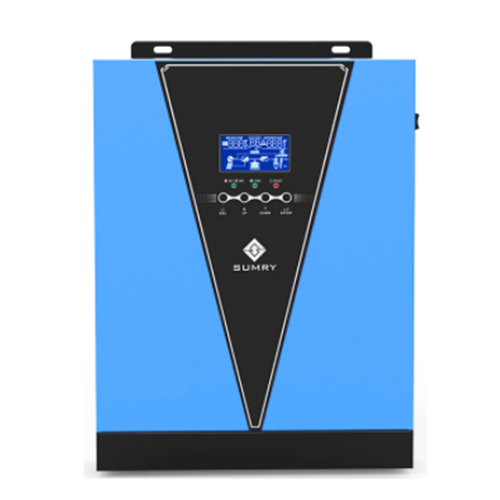

HPS Series Off Grid Solar Inverter
Features
Rate Power: 1500VA/1200W 3000VA/2400W
Pure sine wave inverter
Built-in PWM solar charge controller
Selectable input voltage range for home use
Selectable charging current based on applications
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Share Our Software With Your Network
Description
| MODEL | HPS 1.5K-12 | HPS 1.5K-24 | HPS 3K-24 |
| Rated Power | 1500VA/1200W | 1500VA/1200W | 3000VA/2400W |
| INPUT | |||
| Voltage | 230VAC | ||
| Selectable Voltage Range | 170-280VAC (for personal computers) 90-280VAC (for home appliances) |
||
| Frequency Range | 50Hz/60Hz (Autosensing) | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt. Mode) | 230VAC±5% | ||
| Surge power | 3000VA | 3000VA | 6000VA |
| Efficiency (Peak) | 90% | 93% | 93% |
| Transfer Time | 10ms (for personal computers) 20ms (for home appliances) |
||
| Wave form | Pure Sine Wave | ||
| BATTERY & AC CHARGER | |||
| Battery Voltage | 12VDC | 24VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC | 27VDC |
| Overcharge Protection | 15.0VDC | 30VDC | 30VDC |
| Maximum charge current | 10A/20A | 20A/30A | 20A/30A |
| SOLAR CHARGER & AC CHARGER | |||
| Charging Current | 50A | ||
| Maximum PV Array Open Circuit Voltage | 55VDC | 80VDC | 80VDC |
| PV Range @ Operating Voltage | 12-20VDC | 30-40VDC | 30-40VDC |
| Standby Power Consumption | 2W | 2W | 2W |
| PHYSICAL | |||
| Dimension. D*W*H(mm) | 305*300*110mm | 305*272*100mm | |
| Net Weight (kg) | 4.5kg | 6.9kg | |
| OPERATING ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
| Operating Temperature | 0℃ to 55℃ | ||
| Storage Temperature | -15℃ to 60°C | ||
