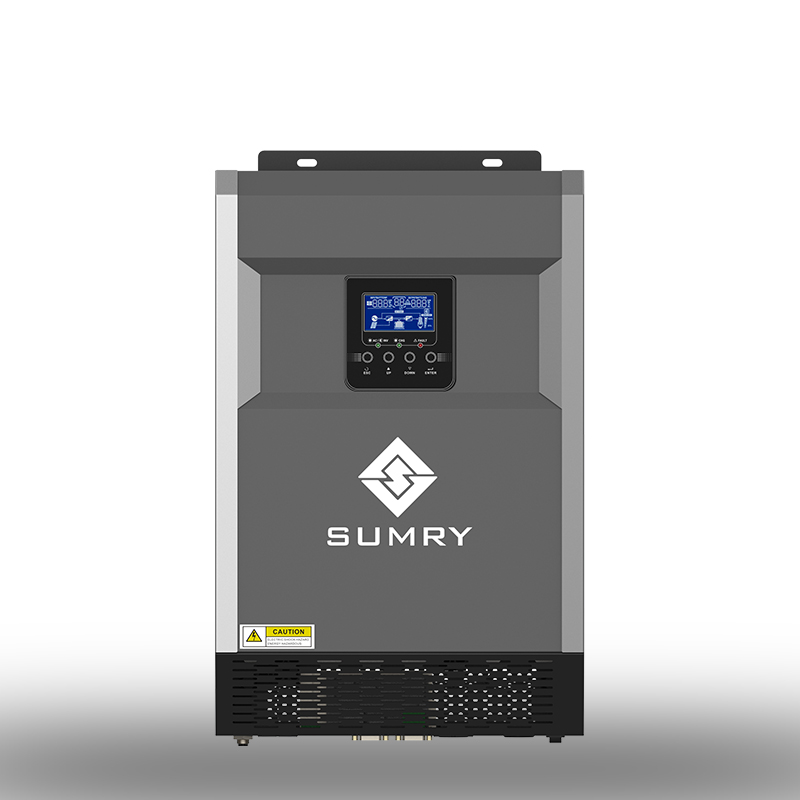

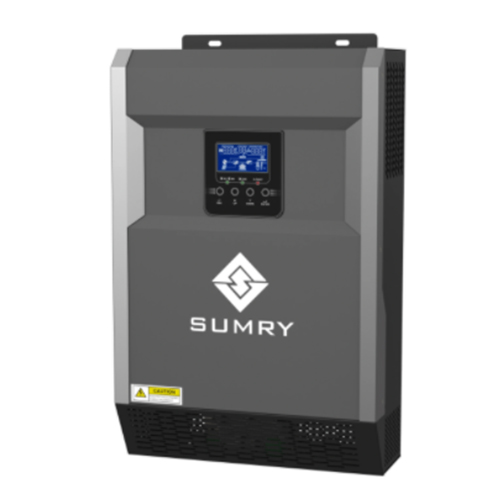

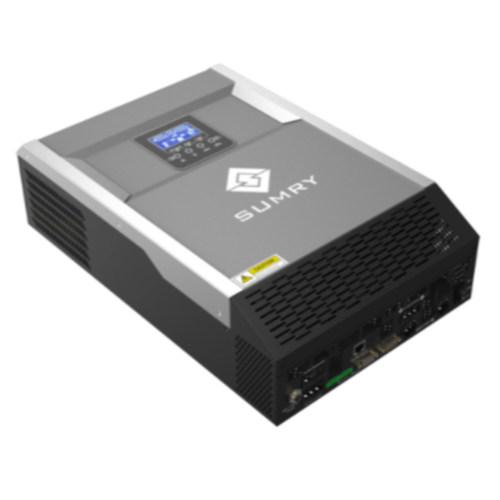

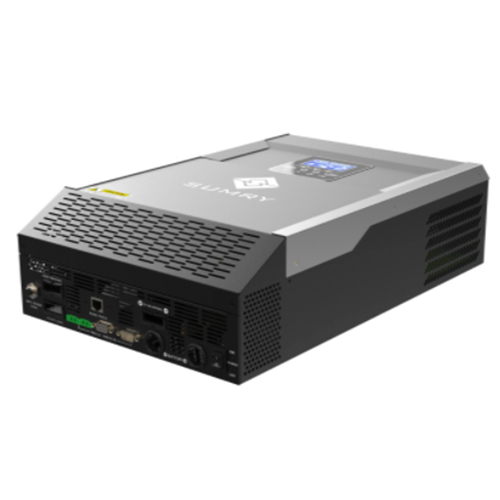

HGS Series Off Grid Solar Inverter
Features
Rate Power: 3500VA/3500W 5500VA/5500W
Pure sine wave output
Output power factor 1.0
Programmable supply priority for PV，Battery or Grid
User-adjustable charge current and voltage
Wide PV input range (120Vdc -500Vdc),110A MPPT SCC
Working without batteries in sunny day
WIFI Monitoring Function (optional)
Anti-dusk kit for harsh environment(optional)
Share Our Software With Your Network
Description
| MODEL | HGS 3500W | HGS 5500W |
| Rated Power | 3500VA/3500W | 5500VA/5500W |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC（for personal computers）
90-280VAC（for home appliances） |
|
| Frequency Range | 50Hz/60Hz（Auto sensing） | |
| OUTPUT | ||
| AC Voltage Regulation（Batt . Mode） | 230VAC±5% | |
| Surge Power | 7000VA | 11000VA |
| Efficiency（Peak）PV to INV | 97% | |
| Efficiency（Peak）BAT to INV | 94% | |
| Transfer Time | 10ms（for personal computers）
20ms（for home appliances） |
|
| Wave form | Pure Sine Wave | |
| BATTERY&AC CHARGER | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 33VDC | 63VDC |
| Maximum charge current | 80A | 80A |
| SOLAR CHARGER | ||
| MAX.PV Array Power | 5000W | 6000W |
| MPPT Range@ Operating Voltage | 120-450VDC | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum Charging Current | 110A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension. D*W*H（mm） | 472*297*129 | |
| Net Weight（kgs） | 13kg | 14kg |
| Communication Interface | RS485/RS232（Standard）
WIFI（Optional） |
|
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity（Non-condensing） | |
| Operating Temperature | 0℃ to 55℃ | |
| Storage Temperature | -15℃ to 60℃ | |
