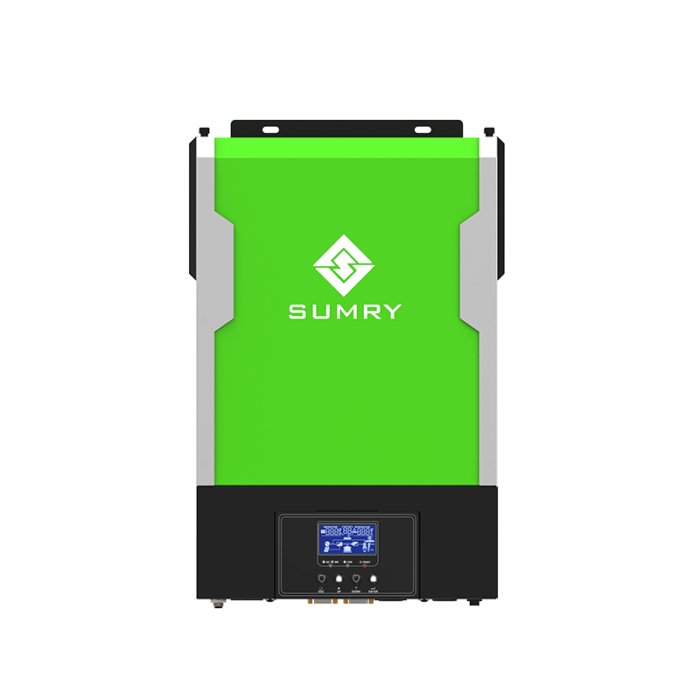

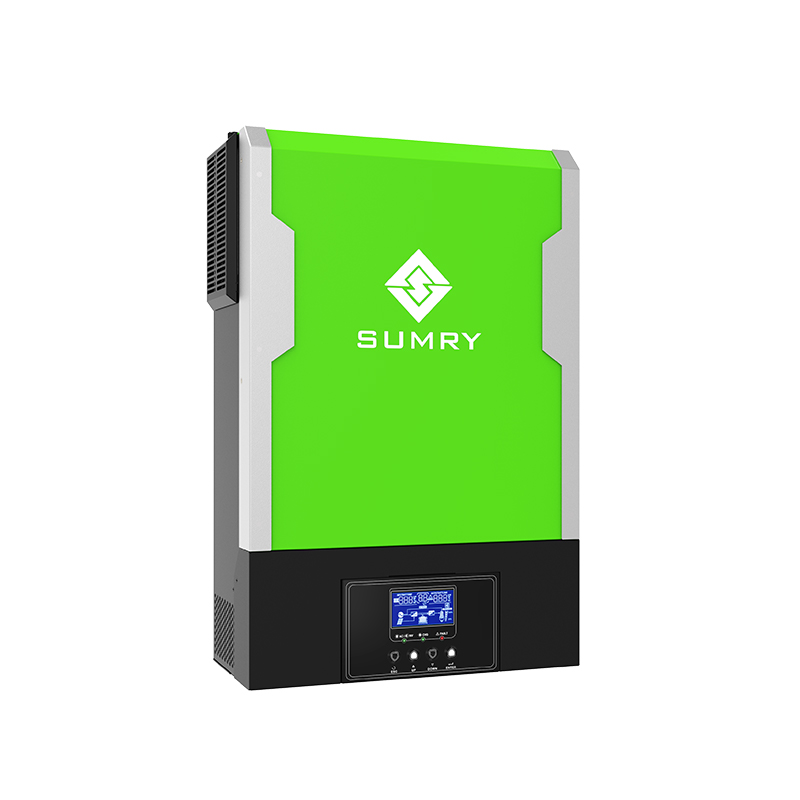

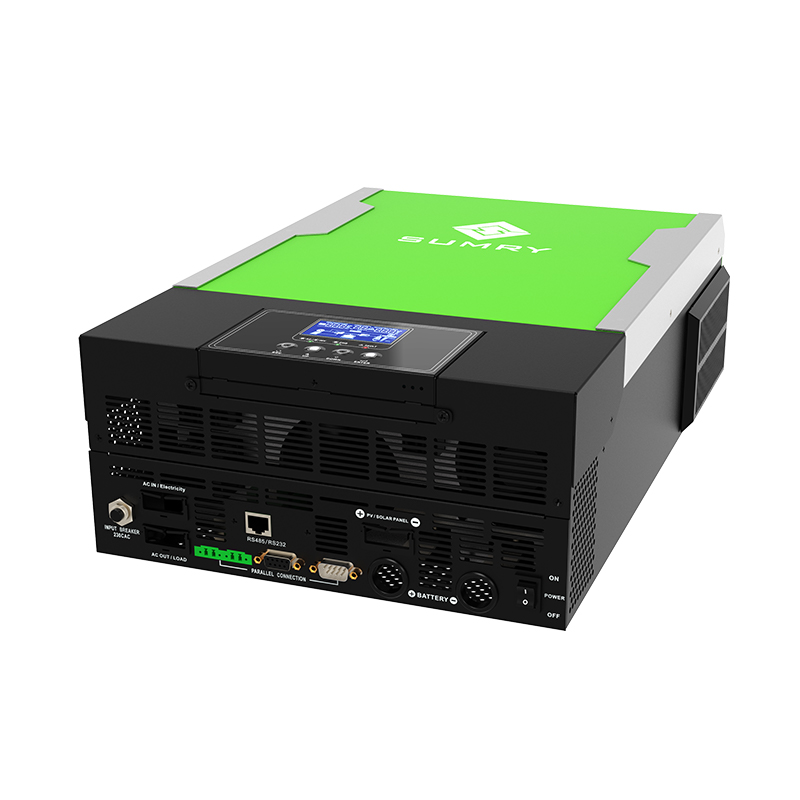

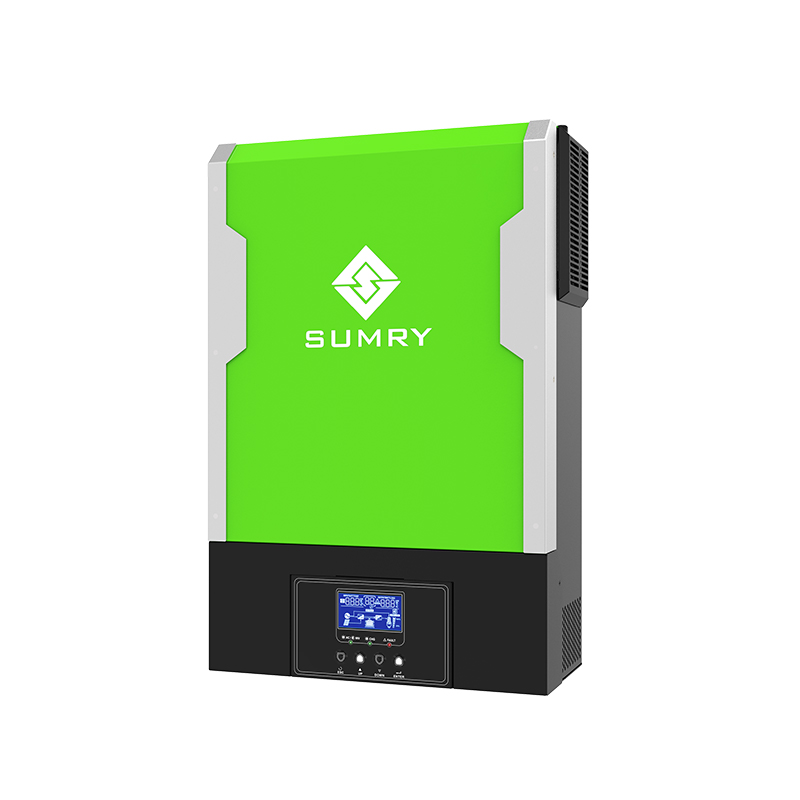

HGP PRO Series Off Grid Solar Parallel Inverter
Features:
Pure sine wave output
Output power factor 1.0
Programmable supply priority for PV ,battery or Grid
User-adjustable charge current and voltage
Wide PV input range (120Vdc -500Vdc),110A MPPT SCC
Working without batteries in sunny day
WiFi Monitoring Function (optional)
Anti-dusk kit for harsh environment(optional)
LCD remote control with 5/10/20 meters wire(optional)
PV and electricity complementary
Use with lithium batteries
Parallel operation up to 6 units
Remove LCD
Share Our Software With Your Network
Description
HGP PRO Series Off Grid Solar Parallel Inverter
| Model | HGP-3500W PRO | HGP-5500W PRO |
| Rated power | 3500VA/3500W | 5500VA/5500W |
| INPUT | ||
| Input Voltage | 230VAC | 230VAC |
| Input Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) |
170-280VAC(for personal computers) 90-280VAC(for home appliances) |
| Input Frequency Range | 50Hz/60Hz(Auto sensing） | 50Hz/60Hz(Auto sensing） |
| OUTPUT | ||
| AC Voltage Regulation(Batt.Mode) | 230VAC±5% | 230VAC±5% |
| Surge Power | 7000VA | 11000VA |
| Efficiency（Peak）PV to INV | 97% | 97% |
| Efficiency（Peak）BAT to INV | 94% | 94% |
| Transfer Time | 10ms（for personal computers） 20ms（for home appliances） |
10ms（for personal computers） 20ms（for home appliances） |
| Wave form | Pure Sine Wave | Pure Sine Wave |
| BATTERY & ACCHARGER | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 31VDC | 61VDC |
| Maximum charge current | 80A | 80A |
| SOLAR CHARGER | ||
| MAX.PV Array Power | 5000W | 6000W |
| MPPT Range@ Operating Voltage | 120-500VDC | 120-500VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC | 500VDC |
| Maximum Charging Current | 110A | 110A |
| Maximum Efficiency | 98% | 98% |
| PHYSICAL | ||
| Dimension. D*W*H（mm） | 472*298*143 | 472*298*143 |
| Net Weight（kgs） | ||
| Communication Interface | RS485/RS232(Standard) LCD remote/WiFI(Optional) |
RS485/RS232(Standard) LCD remote/WiFI(Optional) |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity（Non-condensing） | 5% to 95% Relative Humidity（Non-condensing） |
| Operating Temperature | 0℃ to 55℃ | 0℃ to 55℃ |
| Storage Temperature | (-15℃ to 60℃) | (-15℃ to 60℃) |
