Description

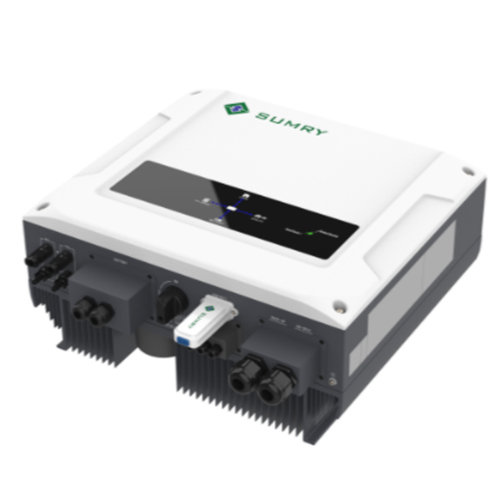

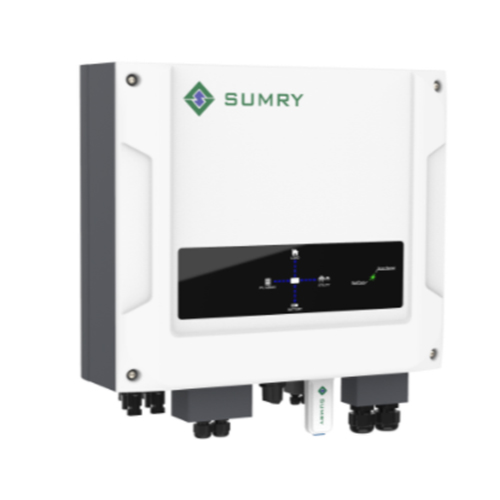

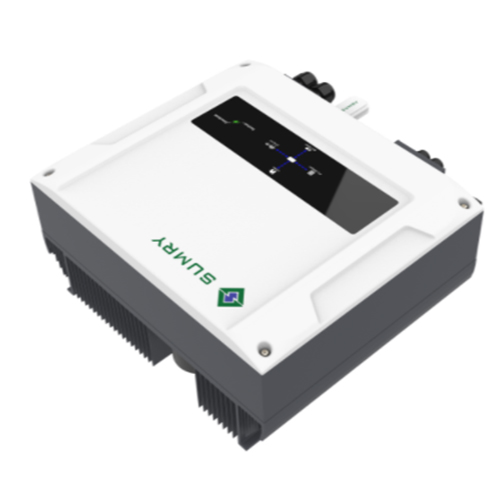

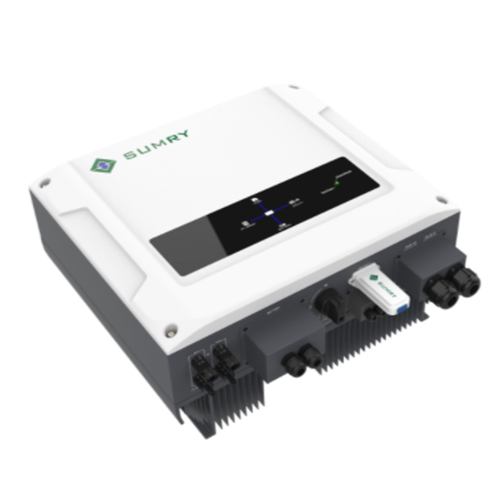

| MODEL | Aegis 3600ES | Aegis 5000ES |
| INPUTDATA (DC) | ||
| Max. DC Power | 3800W | 5400W |
| Max. DC Voltage | 550V | |
| Start voltage | 110V | |
| DC Normal Voltage | 360V | |
| PV Voltage Range. | 100V-550V | |
| MPPT Voltage Range | 120V-500V | |
| MAX. Input Current Per String of | 11A/11A | |
| Number of independent MPPT Inputs | 2 | |
| OUTPUT DATA（DC） | ||
| Nominal AC Output Power | 3600W | 5000W |
| MAX. AC Apparent Power | 3600VA | 5000VA |
| MAX. Output current | 16.4A | 22.8A |
| AC Nominal Voltage Range | 220V/230V/240V;180-280V | |
| AC Grid Frequency Range | 50/60Hzx5Hz | |
| Power Factor Rate Power | 1 | |
| Power Factor | 0.9 Leading | |
| THDI | <0.3% | |
| AC Connection | Single phase | |
| BATTERY | ||
| Battery Type | Li-ion or Lead-acid | |
| Nominal Voltage | 51.2V | |
| Battery Capacity | ≥1000AH (depending requirement) | |
| Energy | 5.0KWH | |
| Max. Discharge/Charging Power | 3600W | |
| Charging Curve | 3-stage Adaptive with main tenace | |
| Operating Voltage Range | 40V-60V | |
| Protection | 66A/66A | |
| Max. Discharge/Charging Current | ||
| BACKUP OUTPUT | ||
| Max. Output Rate Power Without Solar | 3600W | |
| Max. Output Power with Solar | 5000W | |
| Peak Power | 4500W，3s | |
| Output Voltage. | 230V，50Hz (60Hzoptional)±0.2%.THDv<3% (Linear load) | |
| EFFCIENCY | ||
| Max. Efficiency | 97% | 97.10% |
| Euro-eta | 96.50% | 96.50% |
| MPPT Efficiency | 99.50% | 99.50% |
| PROTECTION DEVICES | ||
| DC Reverse Polarity Protection | YES | |
| DC Switch Rating for Each MPPT | YES | |
| Output Over Current Protection | YES | |
| Output Over Voltage Protection | YES | |
| Ground Fault Monitoring | YES | |
| Grid Monitoring | YES | |
| Integrated all-pole Sensitive Leakage Current |
YES | |
| GENERAL DATE | ||
| Dimensions (W*H*D) | 495*420*165mm | |
| Weight | 28kg | |
| Operating Temperature Range | -25+60℃（-13+140℃）with derating above 45℃（113℃） | |
| Noise Emission（Typical） | ≤25db（A） | |
| Altitude | Up to 2000m（65600ft）without power derating | |
| Relative Humidity | 95% | |
| Consumption：Operating（standby）/night | <5w/<5w | |
| Topology | No transformer | |
| Cooling Concept | Natural | |
| Environmental Protection Rating | IP65 | |
| FEATURES | ||
| DC Connection | H4/MC4 | |
| AC Connection | Screw Terminal | |
| Display | LED | |
| Interface | WIFI/USB, GPRS/3G/RS485(OPTIONAL). 5Years，10vears/15years(optional) |
|
| Warranty | ||
| Certificates and Approvals | CE，IEC62109-182，VDE0126-1-1，G83/2，AS4777&AS/NZS 3100 | |
